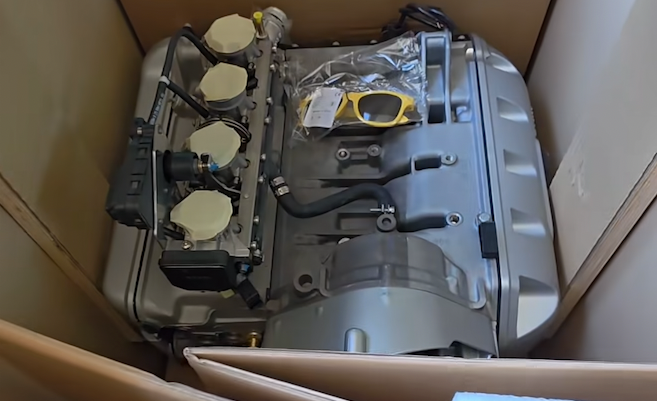

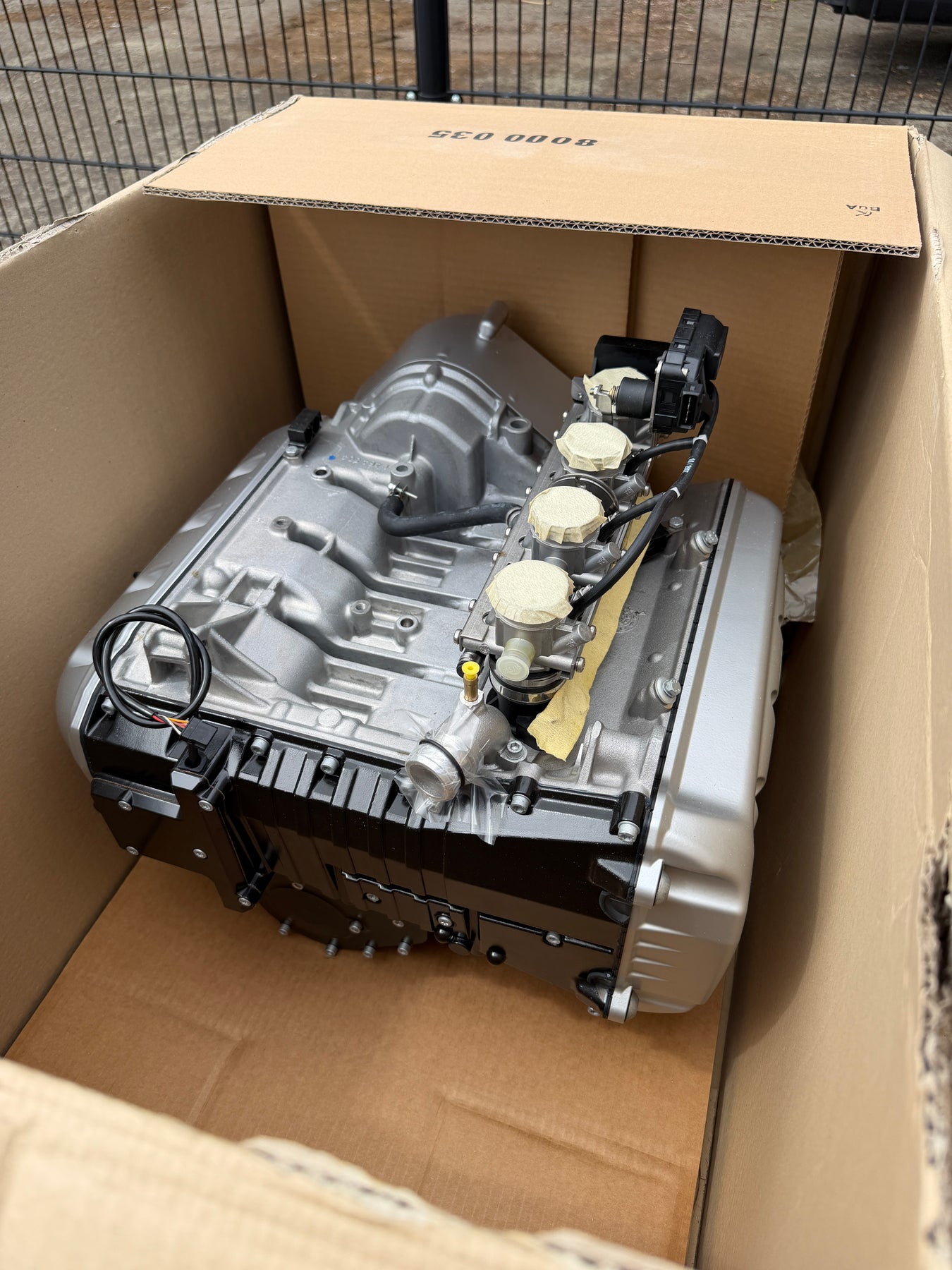

BMW FB02 Motorsport Engine – Brand New

The BMW FB02 is a rare factory-built 1171cc inline-four engine developed by BMW Motorsport for the Formula BMW FB02 race car. Based on the legendary K1200 engine platform, it was engineered for exceptional performance, durability, and continuous high-RPM operation under racing conditions.

Producing approximately 140 horsepower in standard specification, the FB02 delivers a significant performance increase over the original K1100 engine while maintaining the legendary reliability of BMW’s K-series platform.

Whether you’re building the ultimate café racer, streetfighter, or a one-of-a-kind custom K-bike, the FB02 is one of the most desirable engine swaps available.

Included

Each brand-new FB02 engine is supplied complete with:

• Hall sensor (K1200)
• Engine temperature sensor

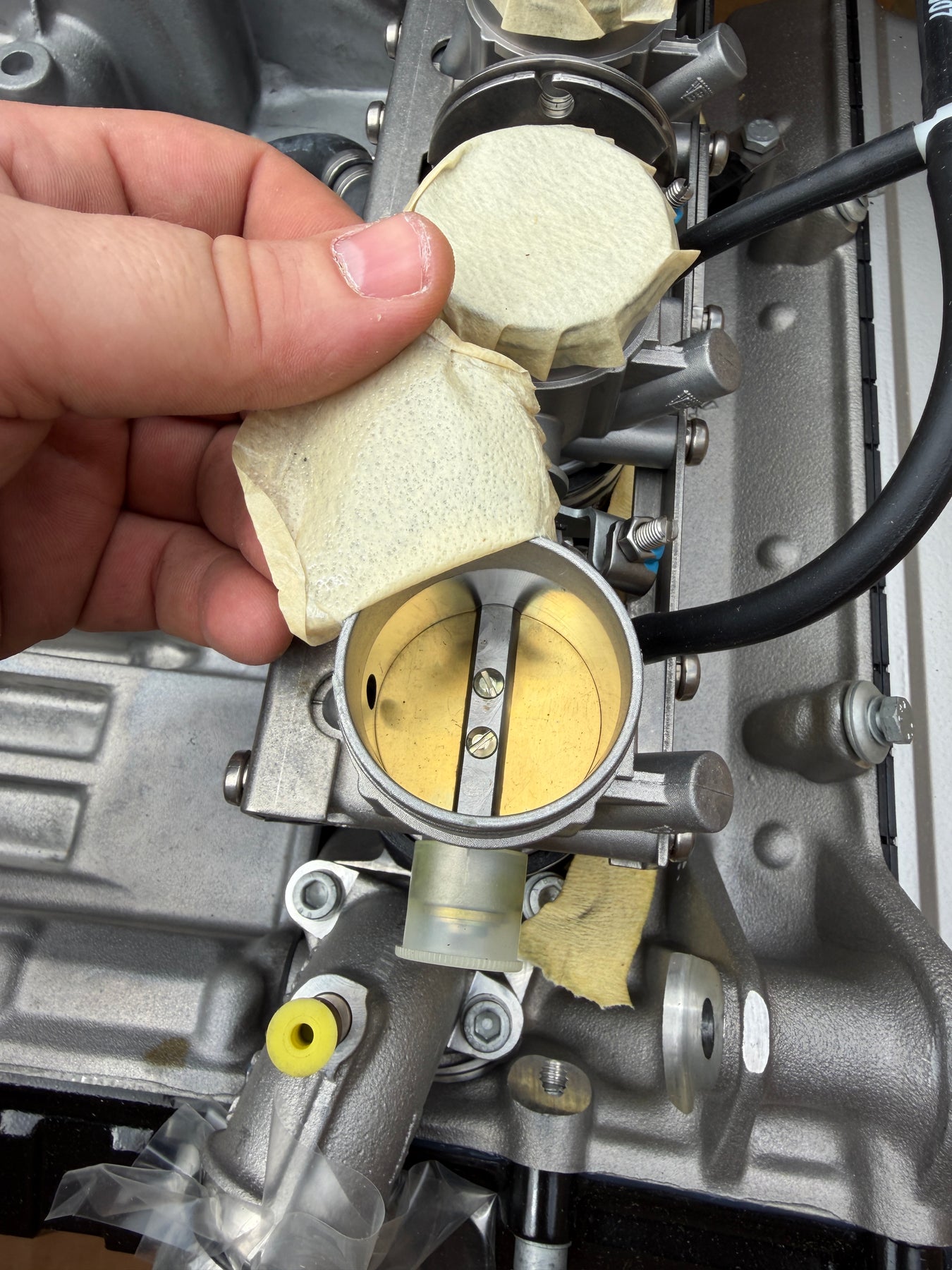

• Complete throttle body assembly
• Throttle Position Sensor (TPS)
• Complete oil/water pump assembly

Required Modifications

To install the FB02 engine into a BMW K1, K100 16V, or K1100, the following original components must be transferred:

• Hall sensor
• Starter sprag clutch
• Complete clutch assembly
• Clutch bellhousing

No internal engine modifications are required. Once these components have been transferred, the engine is compatible with the original K-series drivetrain.

Unlock the Full Potential

To get the most out of the FB02 engine, we highly recommend combining it with the BSK SpeedWorks EMS Kit.

The original engine management system was designed for a completely different application. A standalone BSK SpeedWorks EMS gives you full control over ignition timing, fuel delivery, idle control, and engine calibration, making the installation considerably easier while allowing the engine to perform exactly as intended.

Whether you’re aiming for maximum power, improved throttle response, or a perfectly tuned custom build, the BSK SpeedWorks EMS unlocks the full performance potential of the FB02.

Why Choose the FB02?

• Genuine BMW Motorsport engine
• Approximately 140 HP
• 1171cc liquid-cooled inline-four
• Based on the proven BMW K1200 platform
• Designed for continuous racing use
• Exceptional reliability and durability
• Outstanding tuning potential
• Perfect for K1, K100 16V, and K1100 custom builds
• Extremely rare, especially in brand-new condition

Build Something Exceptional

Brand-new BMW FB02 engines are almost impossible to find today. This is a unique opportunity to own a genuine BMW Motorsport powerplant and transform your K-series project into something truly special.

If you’re looking to build one of the fastest, most exclusive, and best-performing BMW K-series motorcycles, the FB02 is the ultimate foundation.


EXACT SHIPPING COSTS ARE BASED ON ADRESS.

Engines will arrive in our warehouse in 2 weeks, Will be ready to ship by end of July.

Only a few available, grab this chance while it lasts!
